Doméstica ELECTRA Pellet Boiler
The ELECTRA pellet domestic boilers are fully automatic and were built for hot water production by using wood pellet as fuel.
Cast body, available in powers of 25 and 32kw.
Ficha técnica do produto
| Código | Modelo | Preço (s/IVA) | Disponibilidade | Comprar |
|---|---|---|---|---|
| 0103-0412 | ELECTRA 25 Biomass Boiler | Entrar no My Zantia | ||
| 0103-0413 | ELECTRA 32 Biomass Boiler | Entrar no My Zantia |
Principais Características
• Automatic ignition;
• Casted body;
• Can be connected to an external chronothermostat;
• Silo with a capacity of 80kg of pellet.
Especificações Técnicas
| Technical data | Electra 25 | Electra 32 |
|---|---|---|
| Nr of elements | 5 | 7 |
| Nominal power (kW) | 25 | 32 |
| Min. power (kW) | 7.5 | 9.6 |
| Performance | 86.8 | 87.9 |
| Minimum consumption - Max. (kg/h) | 1.74 - 5.8 | 2.45 - 8.2 |
| Autonomy (hrs) | 14.17 - 60.7 | 10.625 - 35.42 |
| Fumes temperature (Degree C) | 120 - 210 | 120 - 210 |
| Air mass flow (kg/s) | 0.009 - 0.018 | 0.014 - 0.021 |
| Water volume (l) | 40.9 | 50.3 |
| Capacity of the Silo (kg) | 80 | 80 |
| Maximum pressure (Bar) | 4 | 4 |
| Test pressure (Bar) | 8 | 8 |
| Load loss (△T=20 Degree C) (Pa) | 80 | 110 |
| Minimum return temperature | 60 | 60 |
| Necessary depression in the chimney | 15 - 25 | 20 - 30 |

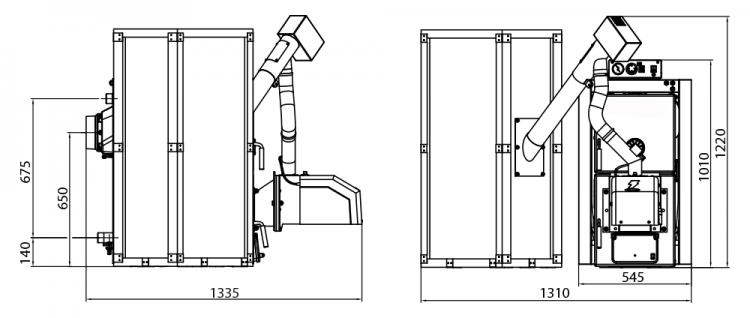

| Dimensions (HxWxD) | 1218x1309x1335 | 1218x1309x1527 |
| Admission/return connections | 1 1/2" | 1 1/2" |
| Electric supply | 230/50/1~ | 230/50/1~ |
| Electric consumption (W) | 100 / 1200 | 100 / 1200 |
| Fumes exit diameter (mm) | 156 | 156 |
| Weight (kg) | 332 | 401 |
